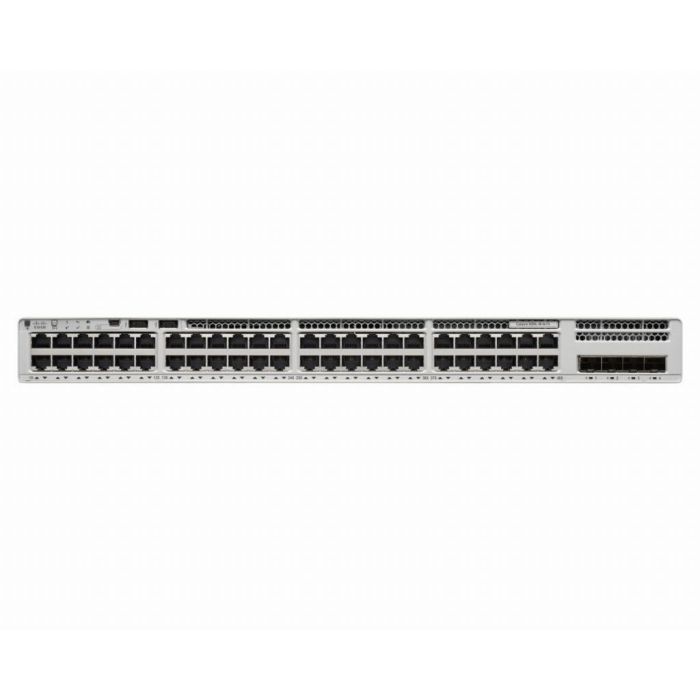

Cisco C9200-48T-E
Gratis verzending NL
Cisco Catalyst C9200. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. Full duplex, Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Netstekker: AC-in-aansluiting
Eigenschappen
- Managed L3 Web-gebaseerd management SNMPv1/v2c/v3
- Quality of Service (QoS) Locatie-instellingen (CLI) configureren
- Aantal basis-switching RJ-45 Ethernet-poorten: 48
- Access Control List (ACL)
- Vermogenstoevoer inclusief
Levertijd 1 werkdag
Beschikbaar: 2
- SKU
- C9200-48T-E
€ 2.679,33
Omschrijving
Cisco Catalyst C9200. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. Full duplex, Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Netstekker: AC-in-aansluiting
Specificatie
| Artikelnummer | 960921 |
|---|---|
| SKU | C9200-48T-E |
| EAN Code | 0889728168236 |
| Merk | CISCO |
| Beheerfuncties | |
| MIB-ondersteuning | BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| Traffic-classificatie | Ja |
| Web-gebaseerd management | Ja |
| Quality of Service (QoS) | Ja |
| Switch-laag | L3 |
| Switch type | Managed |
| Poorten & interfaces | |
| Netstekker | AC-in-aansluiting |
| Fast Ethernet (koperen) ports kwantiteit | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Netwerk | |
| Aantal VLANs | 4096 |
| VLAN=ondersteuning | Ja |
| Datastroombeheer | Ja |
| Spanning tree protocol | Ja |
| Routing entries | 4000 |
| Full duplex | Ja |
| IP routing | Ja |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data-uitwisseling | |
| Packet buffergeheugen | 6 MB |
| Jumbo frames | 9198 |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | 128-bit AES |
| Access Control List (ACL) | Ja |
| Multicast-functies | |
| IPv6-multicast-vermeldingen | 2000 |
| IPv4-multicast-vermeldingen | 4000 |
| Multicast MAC adrestabel | 1000 entries |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Beheerprotocollen | SNMPv1/v2c/v3 |
| Design | |
| Certificering | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1 |
| Elektromagnetische compatibiliteit | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Kleur van het product | Grijs |
| Prestatie | |
| Flash memory | 4000 MB |
| Intern geheugen | 4000 MB |
| Type geheugen | DRAM |
| Algemeen | |
| Productfamilie | Catalyst |
| Energie | |
| Stroomverbruik (typisch) | 125 W |
| Stroom | 1.6 - 0.7 A |
| AC-ingangsfrequentie | 50 - 60 Hz |
| AC-ingangsspanning | 100 - 240 V |
| Redundante voeding | Ja |
| Vermogenstoevoer inclusief | Ja |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Hoogte, in bedrijf | 0 - 3000 m |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
| Temperatuur bij opslag | -40 - 70 °C |
| Bedrijfstemperatuur (T-T) | -5 - 45 °C |
| Gewicht en omvang | |
| Gewicht | 5 kg |
| Hoogte | 44 mm |
| Diepte | 350 mm |
| Breedte | 445 mm |
| Verpakking | |
| Type verpakking | Doos |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
